Descripción
ESPECIFICACIONES

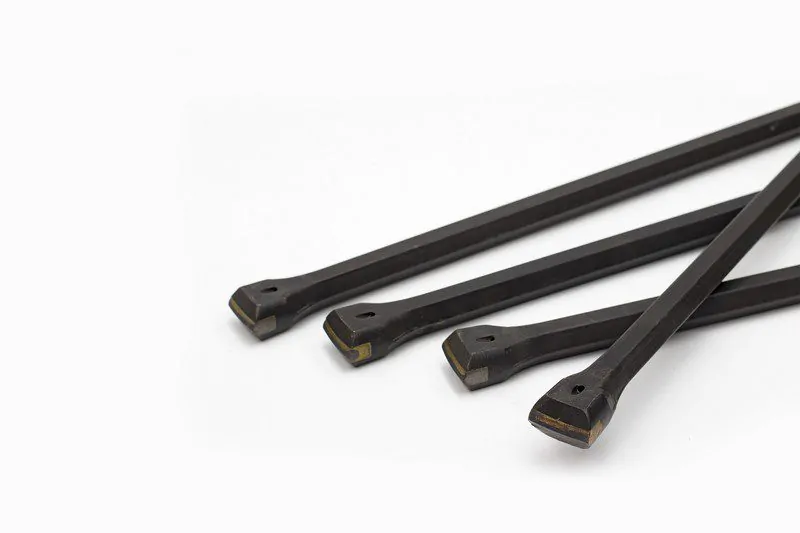

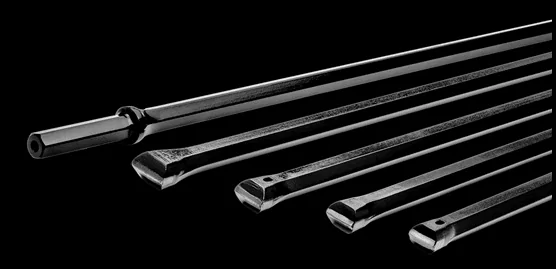

Las barras de perforación integrales se utilizan principalmente para la perforación de agujeros pequeños y extracción subterránea. Normalmente se utilizan en perforadoras con soporte neumático y perforadoras manuales. Disponemos de barras integrales de diferentes longitudes que pueden variar de 600 a 9.600 mm. Ventajas Amplia selección de barras Materiales de alta calidad.
Detalles del Producto:
| Series 21 | Length in mm | Diameter in mm | Part number |
| 19X108 | 400 | 29 | 07240429-20 |
| 19X108 | 800 | 28 | 07240828-20 |
| 19X108 | 1200 | 27 | 07241227-20 |
| 19X108 | 1600 | 27 | 07241627-20 |
| 19X108 | 2400 | 26 | 07242426-20 |
| 19X108 | 3200 | 25 | 07243225-20 |
| Series 22 | Length in mm | Diameter in mm | Part number |
| 19×108 | 400 | 26 | 07240426-20 |
| 19X108 | 800 | 25 | 07240825-20 |
| 19X108 | 1200 | 24 | 07241224-20 |
| Shank 22×108 | Length in mm | Diameter in mm | Part number |
| 22X108 | 400 | 29 | 07280426-20 |
| 22X108 | 800 | 28 | 07280828-20 |
| 22X108 | 1200 | 27 | 07281227-20 |
| 22X108 | 1600 | 27 | 07281627-20 |
| 22X108 | 2400 | 26 | 07282426-20 |
| 22X108 | 3200 | 25 | 07283225-20 |
| 22X108 | 400 | 26 | 07280426-20 |
| 22X108 | 800 | 25 | 07280825-20 |
| 22X108 | 1200 | 24 | 07281224-20 |
| Series 11 | Length in mm | Diameter in mm | Part number |
| 800 | 34 | 07140834-11 | |
| 1600 | 33 | 07141633-11 | |
| 2400 | 32 | 07142432-11 | |
| 3200 | 31 | 07143231-11 | |
| 4000 | 30 | 07144030-11 | |
| 4800 | 29 | 07144829-11 | |
| 5600 | 28 | 07145628-11 | |
| 6400 | 27 | 07146427-11 | |
| 7200 | 26 | 07147226-11 | |
| Series 12 | 800 | 40 | 07140840-11 |
| 1600 | 39 | 07141639-11 | |
| 2400 | 38 | 07142438-11 | |
| 3200 | 37 | 07143237-11 | |
| 4000 | 36 | 07144036-11 | |
| 4800 | 35 | 07144835-11 | |
| 5600 | 34 | 07145634-11 | |
| 6400 | 33 | 07146433-11 | |
| 7200 | 32 | 07147232-11 | |
| 8000 | 31 | 07148031-11 | |
| 8800 | 30 | 07148830-11 | |
| 9600 | 29 | 07149629-11 | |
| Series 13 | 400 | 34 | 07140434-11 |
| 800 | 33 | 07140833-11 | |
| 1200 | 32 | 07141232-11 | |
| 1600 | 31 | 07141631-11 | |
| 2000 | 30 | 07142030-11 | |
| Series 17 | 600 | 41 | 07140641-11 |
| 1200 | 40 | 07141240-11 | |
| 1800 | 39 | 07141839-11 |
barrenas
barrenos integrales
barrenos cónicos
